Tripp Lite Mfg Co.

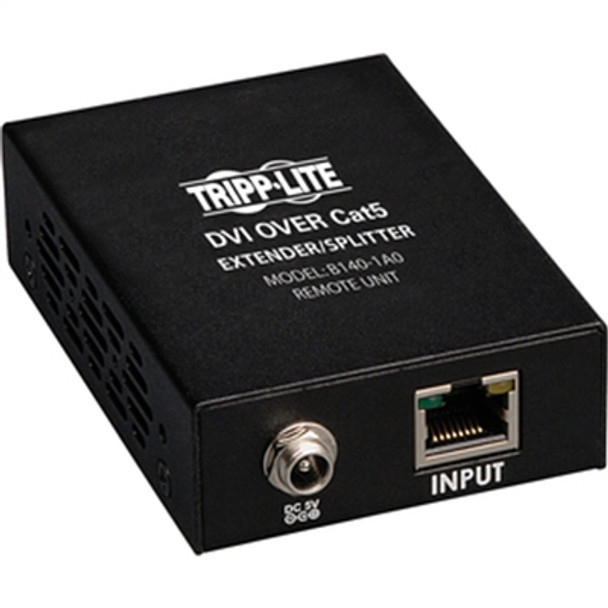

DVI Over Cat5 Active Extender

(No reviews yet) Write a Review
SKU:
DHB1401A0
UPC:
037332156631
Weight:
1.05 LBS
Shipping:
Calculated at Checkout
$265.99

Description

DVI Over Cat5 Active Extender - Transmit a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable. For use with B140-002 or B140-004 extender/splitter transmitter units. Supports DVI-D Single-Link video resolutions up to 1920 x 1080 at 60Hz . Extends a 1920 x 1080 at 60Hz signal up to 150 ft., or a 1024 x 768 at 60Hz signal up to 200 ft. Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution. Features a built-in Equalization control for adjustment of the video image. Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-002 or B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 at 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 at 60Hz signal can be extended up to 175 ft. HDCP compatible. Compatible with all operating systems. Plug and play; no software or drivers required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
